DAVEY SUREFLO 1.5HP 1100W POOL PUMP

Product #:ECM-10-91181

Mfg. Part #:DSF1100


Also known as the Davey Starflo SF pump, it is versatile and flexible for retrofit applications and has self-aligning barrel unions to suit multi-fit applications.

Davey AUS

DAVEY SUREFLO 1.5HP 1100W POOL PUMP

Product #:ECM-10-91181

Mfg. Part #:DSF1100

Description

The Davey Starflo pump embodies reliability, efficiency, and durability to suit multiple applications. This versatile pump is ideal for inground and above ground pools, large swim spas and plunge pools. With models to suit pools up to 90,000L, Davey’s StarFlo is specifically designed to circulate swimming pool water for filtration and sanitisation purposes.

Documents

Feature Bullets

  • Universal reliability for multiple applications
  • Powerful pumping delivering optimum flow rates for rapid pool water turnover
  • A heavy duty motor for protection against the elements, ensuring a long operating life
  • Built-in self-resetting thermal overload, protecting the motor against damage from over-heating
  • High performance Silicon carbide Viton mechanical seal for long life in pool water
  • 316 stainless steel motor shaft
  • Drain plugs enabling simple water drainage for easy maintenance
  • 3m power lead with 10amp Australian three pin plug fitted to all models
  • Self-aligning barrel unions for easy installation
  • Easy to remove, see-through strainer lid

    • Branch Availability

    content loaded

    Specifications

    • BrandDavey AUS
    • Amperage5.8 amperage
    • ItemShippingDimensions0 x 0 x 0 meter
    • ApplicationProductApplication_Above Ground, ProductApplication_Inground, ProductApplication_Pool, ProductApplication_Spa
    • ChannelProductProductChannel_none
    • ColorItemColor_Black
    • Distance A of Head at8 meter
    • Each Product Weight0 kilogram
    • FinishItemFinish_Matte
    • Flow Rate A at Head325 l/min
    • Frequency Rating (Hz)50
    • Horsepower1.5 horse power
    • Minimum Sell Quantity1
    • Noise Rating (dB)60-65
    • PhaseSubItemPumpPhase_Single
    • Product Weight11.5 kilogram
    • RPMs Max2900
    • Temperature Rating Max40 degrees Celsius
    • Voltage220V, 240V
    • Warranty - General36 months
    • Wattage1100 watt
    • UPC Code9320600027308

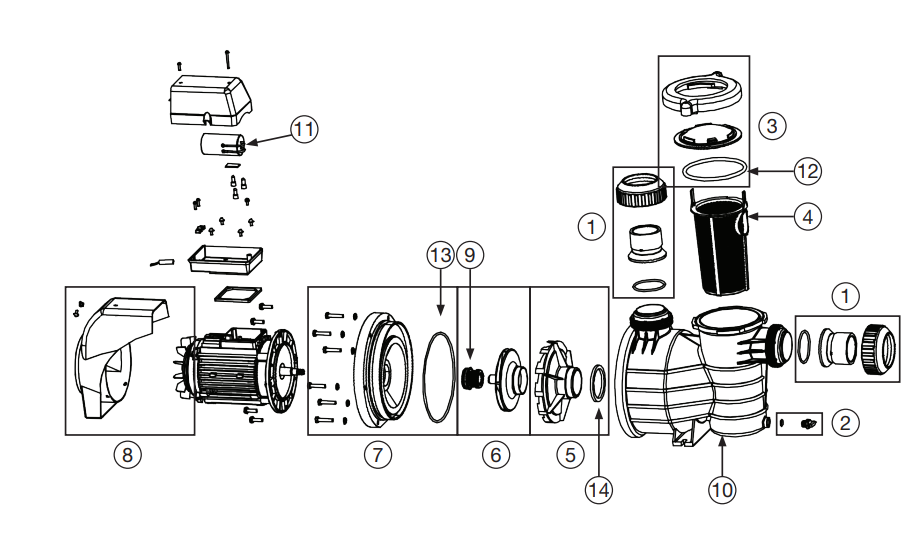

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    402805
    ECM-101-91108
    Product #: ECM-101-91108
    Mfg #: 402805
    Notes:
    Nut - Barrel Union
    2
    2
    402806
    ECM-101-91002
    Product #: ECM-101-91002
    Mfg #: 402806
    3
    3
    402807
    ECM-101-91001
    DAVEY SUREFLO BARREL UNION ORING
    Product #: ECM-101-91001
    Mfg #: 402807
    4
    4
    402810
    Filter Basket
    Product #:
    Mfg #: 402810
    Notes:
    Contact Customer Service
    5
    5
    402811
    O-ring - Filter Basket
    Product #:
    Mfg #: 402811
    Notes:
    Contact Customer Service
    6
    6
    402812
    ECM-101-91132
    DAVEY GENUINE SUREFLO / STARFLO PUMP LID
    Product #: ECM-101-91132
    Mfg #: 402812
    7
    7
    402813
    ECM-101-91133
    DAVEY SUREFLO / STARFLO PUMP LID LOCKING RING
    Product #: ECM-101-91133
    Mfg #: 402813
    8
    8
    402814
    Drainage Plug
    Product #:
    Mfg #: 402814
    Notes:
    Contact Customer Service
    9
    9
    402815
    O-ring - Drainage Plug
    Product #:
    Mfg #: 402815
    Notes:
    Contact Customer Service
    10
    10
    402816
    ECM-101-91134
    Product #: ECM-101-91134
    Mfg #: 402816
    11
    11
    402817
    Gasket
    Product #:
    Mfg #: 402817
    Notes:
    Contact Customer Service
    12
    12
    402818
    ECM-101-91057
    Product #: ECM-101-91057
    Mfg #: 402818
    Notes:
    Diffuser
    13
    13
    402821
    Impeller DSF1100
    Product #:
    Mfg #: 402821
    Notes:
    Contact Customer Service
    14
    14
    402823
    ECM-601-91003
    Product #: ECM-601-91003
    Mfg #: 402823
    Notes:
    Mechanical Seal
    15
    15
    402824
    ECM-601-91134
    Product #: ECM-601-91134
    Mfg #: 402824
    Notes:
    O-ring - Backplate
