Hayward

HAYWARD YELLOW AQUA CRITTER POOL CLEANER W/ HOSE

Product #:HAY-20-91011

Mfg. Part #:1A-500YAC


The Hayward Aqua Critter is a fun, efficient pool cleaner for above-ground and in-ground pools. Installs in minutes, offers quiet operation, improved circulation, and thorough floor coverage with its SmartDrive steering system.

Hayward

HAYWARD YELLOW AQUA CRITTER POOL CLEANER W/ HOSE

Product #:HAY-20-91011

Mfg. Part #:1A-500YAC

Description

The Hayward Aqua Critter Pool Cleaner with hose is a fun, efficient, and reliable solution for keeping your pool sparkling clean. Designed for both above-ground pools with flat or dished bottoms and in-ground pools, it installs in less than 10 minutes without the need for tools. Its advanced, contoured head design works seamlessly with the patented SmartDrive programmed steering system, ensuring the cleaner follows an efficient path to cover every part of the pool floor in minimal time.

Powered by a unique turbine and gearing system, the Aqua Critter delivers a constant, balanced water flow for quiet operation and gentle movement across the pool bottom. As it cleans, it also improves water circulation by pulling water from the bottom, enhancing your pool’s overall health and clarity. Slotted santropene shoes allow for quick turns, while the deluxe bumper ring minimises friction against walls, helping the cleaner glide smoothly away and continue its programmed pattern. With its easy setup and dependable performance, the Hayward Aqua Critter makes pool maintenance simple and enjoyable.

Feature Bullets

  • Installs in less than 10 minutes, without tools
  • Slotted santropene shoes for quick turns
  • Patented SmartDrive programmed steering system
  • Unique turbine/gearing system provides constant balanced water flow assuring quiet operation and gentle movement across the pool bottom
  • Improves water circulation by pulling water from the bottom as it moves
  • Advanced, contoured head design allows the steering pattern to be completed in minimal time
  • Deluxe bumper ring minimises friction for easy movement away from walls and resumption of the programmed steering pattern
  • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationProductApplication_Above Ground, ProductApplication_Inground, ProductApplication_Pool
    • ItemShippingDimensions350 x 1110 x 290 millimeter
    • ColorItemColor_Yellow
    • Commercial, Residential, or ProfessionalProductCommercialForPro_Residential
    • Each Product Weight7 kilogram
    • Minimum Sell Quantity1
    • Pallet Quantity20
    • Warranty - General1 years
    • UPC Code9320600030162

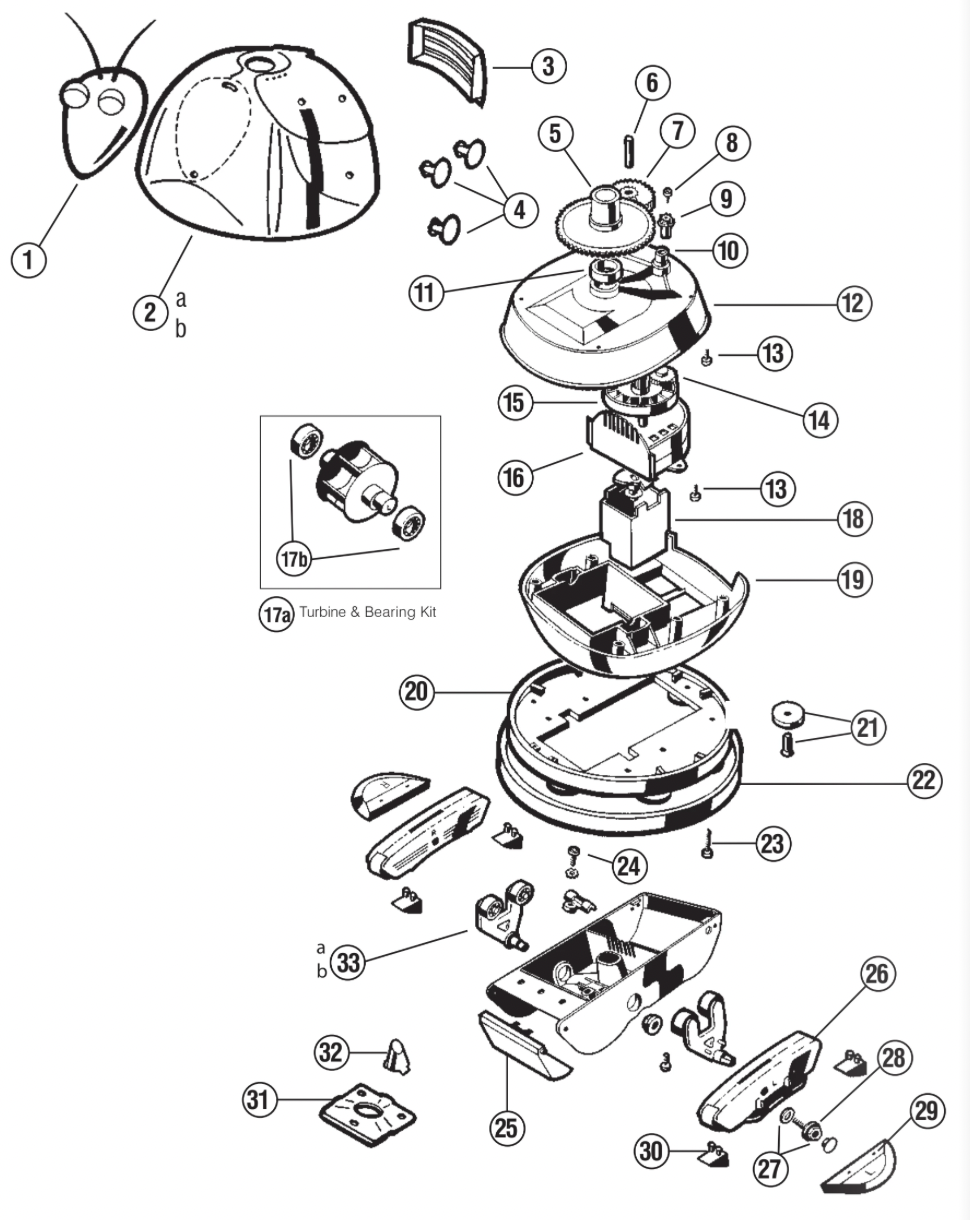

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    20-AXV464
    HAY-201-1037
    Product #: HAY-201-1037
    Mfg #: 20-AXV464
    2A
    2A
    20-AXV4570R
    SHELL, ORANGE
    Product #:
    Mfg #: 20-AXV4570R
    Notes:
    DISCONTINUED
    2B
    2B
    20-AXV457YL
    SHELL, YELLOW
    Product #:
    Mfg #: 20-AXV457YL
    Notes:
    Contact Customer Service
    3
    3
    20-AXV513BK
    ARN-201-1063
    Product #: ARN-201-1063
    Mfg #: 20-AXV513BK
    4
    4
    20-AXV443
    AQUABUG SPOTS, 4 LARGE, 2 SMALL
    Product #:
    Mfg #: 20-AXV443
    Notes:
    Contact Customer Service
    5
    5
    20-AXV070
    ARN-201-1745
    Product #: ARN-201-1745
    Mfg #: 20-AXV070
    -
    -
    20-AXV079VP
    ARN-201-1035
    Product #: ARN-201-1035
    Mfg #: 20-AXV079VP
    Notes:
    Includes # 6, 7, 8, 9, 10, 14, 15, 16
    6
    6
    20-AXV309
    INTERMEDIATE GEAR SHAFT
    Product #:
    Mfg #: 20-AXV309
    Notes:
    Contact Customer Service
    7
    7
    20-AXV301
    INTERMEDIATE GEAR
    Product #:
    Mfg #: 20-AXV301
    Notes:
    Contact Customer Service
    8
    8
    20-AXV068
    SPINDLE GEAR SCREW
    Product #:
    Mfg #: 20-AXV068
    Notes:
    Contact Customer Service
    9
    9
    20-AXV303
    SPINDLE GEAR
    Product #:
    Mfg #: 20-AXV303
    Notes:
    Contact Customer Service
    10
    10
    20-AXV066A
    SPINDLE GEAR BUSHING
    Product #:
    Mfg #: 20-AXV066A
    Notes:
    Contact Customer Service
    11
    11
    20-AXV306
    ARN-201-1911
    Product #: ARN-201-1911
    Mfg #: 20-AXV306
    12
    12
    20-AXV060WH
    UPPER MIDDLE BODY
    Product #:
    Mfg #: 20-AXV060WH
    Notes:
    Contact Customer Service
    13
    13
    20-20-AXV065P
    LOWER/ UPPER BODY SCREW (6 PACK)
    Product #:
    Mfg #: 20-20-AXV065P
    Notes:
    Contact Customer Service

    Wholegoods

    There are no wholegoods available.
