Hayward

HAYWARD S-LINE PRO FI INVERTER 24KW HEAT PUMP

Product #:HAY-15-91024

Mfg. Part #:1H-PASRW060SL24


The Hayward S-Line Pro Fi Heat Pump combines side ventilation for compact installs, ultra-quiet inverter technology, and durable eco-friendly design. Heats efficiently down to –10 °C with smart Bluetooth control.

Hayward

HAYWARD S-LINE PRO FI INVERTER 24KW HEAT PUMP

Product #:HAY-15-91024

Mfg. Part #:1H-PASRW060SL24

Description

The Hayward S-Line Pro Fi Heat Pump is the first of its kind to feature innovative side ventilation, making it ideal for compact installations and small outdoor spaces. Its unique casing requires only 20 cm clearance from the back wall, while reinforced insulation, lateral airflow, and advanced fan design reduce noise and maximise efficiency.

Equipped with full inverter technology, twin rotary compressors, and a DC inverter fan, the S-Line Pro Fi intelligently balances heating comfort with significant energy savings. Powerful yet whisper-quiet, it accelerates heat when needed and operates effectively in ambient temperatures as low as –10 °C.

Built to last, the S-Line Pro Fi features an anti-corrosion, anti-UV metallic housing, a titanium heat exchanger tolerant to all pool treatments, and uses environmentally friendly R32 refrigerant. With its Bluetooth-enabled, user-friendly interface, this heat pump combines innovation, performance, and sustainability—perfect for modern pool owners.

Feature Bullets

  • Unique Side Ventilation Design – Perfect for small spaces, only 20 cm clearance needed
  • Full Inverter Technology – Twin rotary compressors + DC inverter fan for optimal efficiency
  • Super Quiet Operation – Reinforced insulation and lateral airflow for ultra-low noise
  • Extended Season Performance – Operates in ambient temps as low as –10 °C
  • Durable Build – Anti-UV metal housing & titanium heat exchanger compatible with salt, UV, and chemical treatments
  • Eco-Friendly – Uses R32 refrigerant to reduce environmental impact
  • Smart Control – Bluetooth-enabled interface with intelligent energy-saving adjustments
  • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • Amperage21.3 amperage
    • ChannelProductProductChannel_none
    • Compressor TypeSubItemHeaterCompressorType_Rotary
    • Flow Rate Max172 l/min
    • Frequency Rating (Hz)50
    • Heat Exchanger MaterialSubItemHeaterHeatExchangerMaterial_Titanium
    • Minimum Sell Quantity1
    • PhaseSubItemHeaterPhase_Single
    • Product Depth461 millimeter
    • Product Height859 millimeter
    • Product Weight112 kilogram
    • Product Width1165 millimeter
    • Voltage220V, 240V
    • Water Connection 148.3 millimeter
    • Wattage24 kilowatts

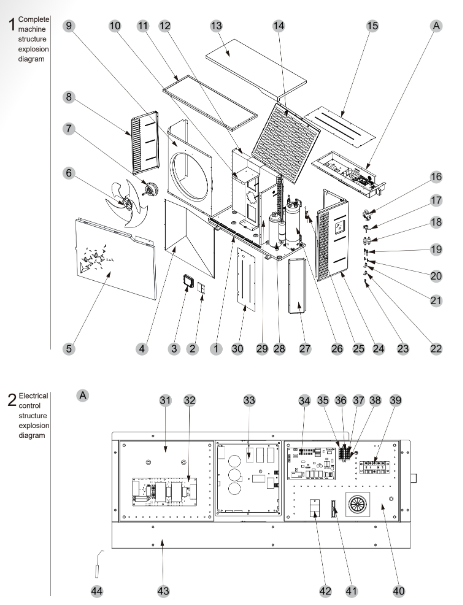

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    80715646
    CHASSIS COMPONENT
    Product #:
    Mfg #: 80715646
    2
    2
    72200312
    LCD300 DISPLAY
    Product #:
    Mfg #: 72200312
    3
    3
    80901004
    WATERPROOF BOX
    Product #:
    Mfg #: 80901004
    4
    4
    80715026
    AIR DEFLECTOR
    Product #:
    Mfg #: 80715026
    5
    5
    80721846
    FRONT PANEL
    Product #:
    Mfg #: 80721846
    6
    6
    301030-00000003
    AXIAL FAN BLADES
    Product #:
    Mfg #: 301030-00000003
    7
    7
    20000-330309
    DC MOTOR
    Product #:
    Mfg #: 20000-330309
    8
    8
    80721848
    LEFT SIDE PLATE
    Product #:
    Mfg #: 80721848
    9
    9
    80713662
    WIND DEFLECTOR COMPONENT
    Product #:
    Mfg #: 80713662
    10
    10
    80715647
    MOTOR HOLDER COMPONENT
    Product #:
    Mfg #: 80715647
    11
    11
    80715648
    TOPSTRAP COMPONENT
    Product #:
    Mfg #: 80715648
    12
    12
    80601509
    FINNED HEAT EXCHANGER
    Product #:
    Mfg #: 80601509
    13
    13
    80710059
    TOP CAP
    Product #:
    Mfg #: 80710059
    14
    14
    80710971
    BACK NET COMPONENT
    Product #:
    Mfg #: 80710971
    15
    15
    80715656
    ELECTRIC BOX COVER
    Product #:
    Mfg #: 80715656

    Wholegoods

    There are no wholegoods available.
