With a 5-star energy rating along with iOS and Android app control via Bluetooth® control, the robust and super quiet ProMaster series offers fully variable speed control.
Description
With a 5-star energy rating along with iOS and Android app control via Bluetooth® control, the robust and super quiet ProMaster series offers fully variable speed control. It’s ideally suited to a wide range of pumping applications, including filtration, solar heating, gas and heat pump heating, as well as suction and in-floor cleaning systems.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandDavey AUS
- ApplicationProductApplication_Pool
- ItemShippingDimensions0 x 0 x 0 meter
- ColorItemColor_Yellow, ItemColor_Black
- FinishItemFinish_Matte
- Frequency Rating (Hz)50
- Voltage220V, 240V
- ChannelProductProductChannel_none
- Connection Size 150 millimeter
- Cord Length3 meter
- Each Product Weight0.01 kilogram
- Minimum Sell Quantity1
- Product Weight14.5 kilogram
- RPMs Max3600
- RPMs Min1500
- Temperature Rating Max40 degrees Celsius
- Warranty - General36 months
- UPC Code9320600027285

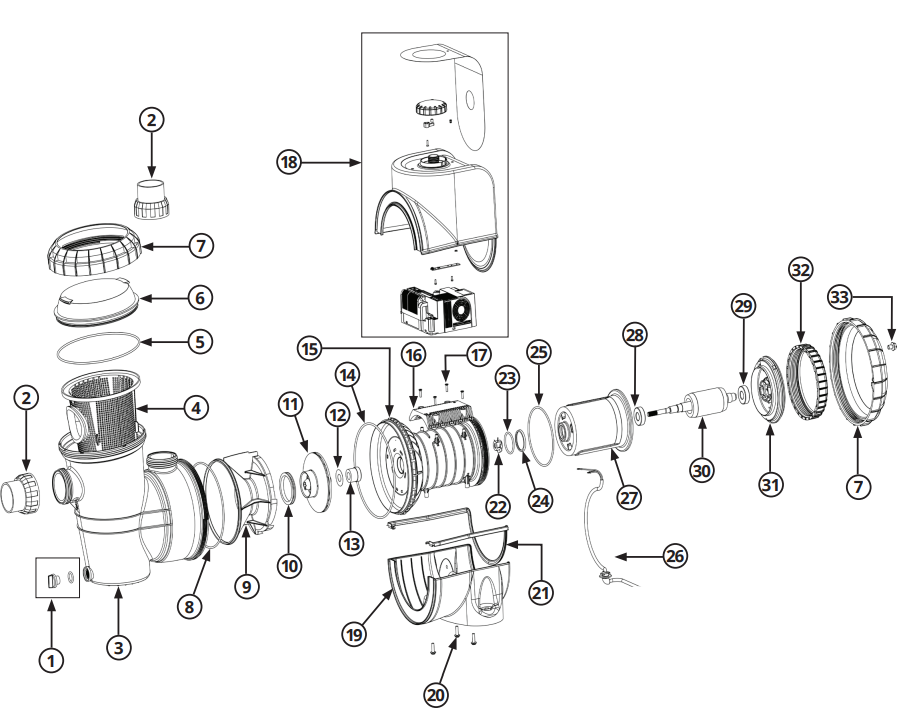

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
8890-2SP
Plug & O-ring - Priming
Product #:
Mfg #: 8890-2SP
Notes:
Contact Customer Service2
2
48775-1
Barrel Union Assy (includes nut, tail & o-ring)
Product #:
Mfg #: 48775-1
Notes:
Contact Customer Service3
4
5
5
403187
X-ring
Product #:
Mfg #: 403187
Notes:
Contact Customer Service6
7
8
8
43784
ECM-601-91051
Product #: ECM-601-91051
Mfg #: 43784
Notes:
O-ring - Casing 9
10
10
13569
ECM-201-91114
Product #: ECM-201-91114
Mfg #: 13569
11
11
32858
Impeller assy
Product #:
Mfg #: 32858
Notes:
Contact Customer Service12
12
13846
Washer - Myler pk 10
Product #:
Mfg #: 13846
Notes:
Contact Customer Service13
13
49771SP
ECM-601-91007
Product #: ECM-601-91007
Mfg #: 49771SP
Notes:
Seal - Mechanical 5/8" 14
14
44858
ECM-601-91053
Product #: ECM-601-91053
Mfg #: 44858
15
15
33088
Motor jacket/water shell & impeller assy
Product #:
Mfg #: 33088
Notes:
Contact Customer ServiceWholegoods
