Ideal for filtration, backwashing, water features, spa jet operation and solar pool heating - the Typhoon self-priming pool pump gives you trouble-free operation and deliver optimum performance in your pool or spa.
Description
The Davey Typhoon series is a Heavy duty pool pump that delivers exceptional flow rates and high water circulation. Ideal for larger pools, multy-story solar heating solutions, in-floor cleaning systems and applications that require rapid water circulation.
The range of Davey Typhoon Swimming Pool pumps are cost effective, deliver high performance and offer a range that will suit all applications. Large flow rates and high head pressure are a feature of the Davey Typhoon range.
The range of Davey Typhoon Swimming Pool pumps are cost effective, deliver high performance and offer a range that will suit all applications. Large flow rates and high head pressure are a feature of the Davey Typhoon range.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandDavey AUS
- Amperage6.6 amperage
- ItemShippingDimensions0 x 0 x 0 meter
- ApplicationProductApplication_Above Ground, ProductApplication_Inground, ProductApplication_Pool
- ColorItemColor_Black
- FinishItemFinish_Matte
- Frequency Rating (Hz)50
- Horsepower1.5 horse power
- Voltage240V
- Wattage1100 watt
- ChannelProductProductChannel_none
- Connection Size 150 millimeter
- Each Product Weight0.01 kilogram
- Minimum Sell Quantity1
- Product Weight13.5 kilogram
- RPMs Max2900
- Temperature Rating Max35 degrees Celsius
- Warranty - General36 months
- UPC Code9321976377349

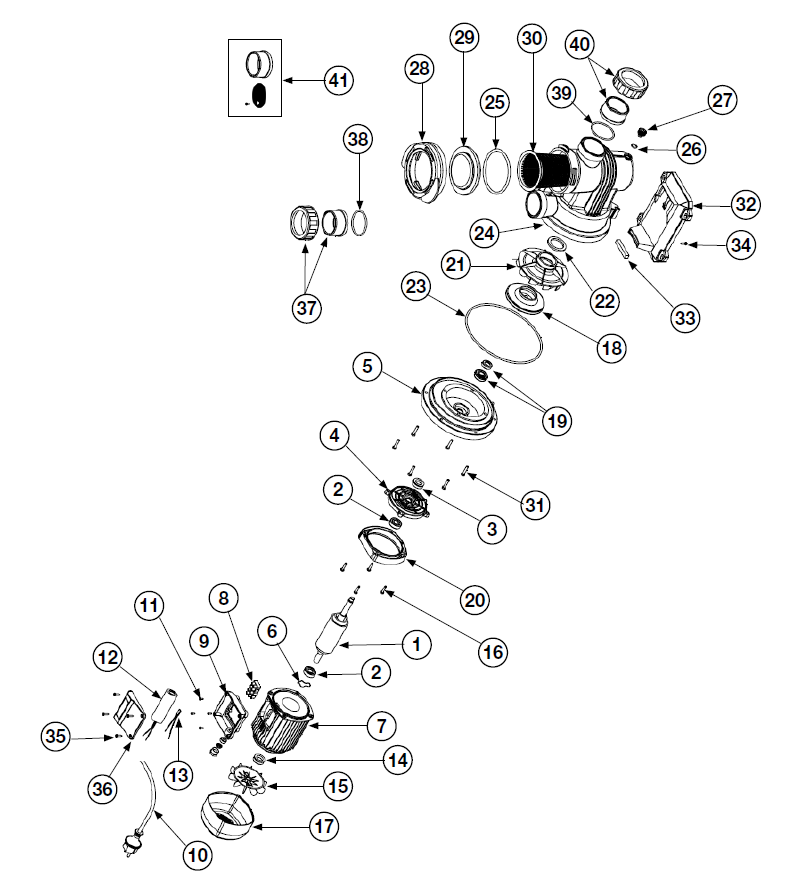

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
ME154646
Rotor Silent/Typhoon C150M
Product #:
Mfg #: ME154646
Notes:
Contact Customer Service2
2
ME1963
ECM-101-91091
Product #: ECM-101-91091
Mfg #: ME1963
Notes:
Bearing - Motor3
3
ME142699
Retainer
Product #:
Mfg #: ME142699
Notes:
Contact Customer Service4
4
ME12200009
Motor Bracket - Silent
Product #:
Mfg #: ME12200009
Notes:
Contact Customer Service5
5
ME11100309
Bracket Silent (Pre 2007)
Product #:
Mfg #: ME11100309
Notes:
Contact Customer Service5
5
ME129420
Bracket Silent (Post 2007)
Product #:
Mfg #: ME129420
Notes:
Contact Customer Service6
6
ME717
Wave Washer
Product #:
Mfg #: ME717
Notes:
Contact Customer Service7
7
ME175545
Complete Stator C150M
Product #:
Mfg #: ME175545
Notes:
Contact Customer Service8
8
ME10000240
Connection Plate C75M - C150M
Product #:
Mfg #: ME10000240
Notes:
Contact Customer Service9
9
ME2811100496
Control Box - Bottom (Series K) Silent (MK I)
Product #:
Mfg #: ME2811100496
Notes:
Contact Customer Service9
9
ME133890
Control Box - Bottom Cyclone
Product #:
Mfg #: ME133890
Notes:
Contact Customer Service10
10
M2699
ECM-451-91023
Product #: ECM-451-91023
Mfg #: M2699
11
11
ME72
Screw - Control Box
Product #:
Mfg #: ME72
Notes:
Contact Customer Service12
12
ME21000011SP
Capacitor 25mf with leads - Suits C150M
Product #:
Mfg #: ME21000011SP
Notes:
Contact Customer Service13
13
ME10000153
Klixon C150M
Product #:
Mfg #: ME10000153
Notes:
Contact Customer ServiceWholegoods
There are no wholegoods available.
