Pentair

PENTAIR MAX-E-PRO 2HP 1500W POOL PUMP

Product #:PAC-10-91231

Mfg. Part #:MP1500100


High efficiency, low maintenance and maximum performance. All the features demanded by today's pool professionals.

Pentair

PENTAIR MAX-E-PRO 2HP 1500W POOL PUMP

Product #:PAC-10-91231

Mfg. Part #:MP1500100

Description

High efficiency, low maintenance and maximum performance. All the features demanded by today's pool professionals. The Max-E-Pro has our new Quick-Lockâ„¢ trap cover ring and the 2" (50mm) ports incorporate internal and external threads. Available in single and three phase, with ratings from 1 to 3 HP (750-2200W). Built with quality construction using a durable one-piece pump housing constructed of Dura-Glasâ„¢ Sta-Rite's industry leading glass-reinforced composite resin. Fast cleaning with a new Quick-Lock trap covering permits fast access to strainer basket. Large see-thru lid makes it simple to check for debris. A strong, sturdy, specially-designed base dampens sound and vibration, making the Max-E-Pro one of the quietest pumps in its class.

Feature Bullets

  • Typical Installation – Inground pools, pool/spa combinations, inground spas, fountains and water features
  • Self-priming – Suction lift up to 4.5m above water level
  • Easy-to-Install – 2" ports include external and internal threads for more plumbing options
  • Superior Hydraulic Design – Moves larger volumes of water, resulting in lower operating costs
  • Impeller Manufactured with PPO Resin - Withstands the toughest water environments
  • Fluoroelastomer Rubber Shaft Seal - Longer-lasting seal stands up to the harshest environments
  • Self-lubricating Lid O-ring – Does not require lubricant
  • 3 year limited warranty. Terms and conditions apply.
  • Branch Availability

    content loaded

    Specifications

    • BrandPentair
    • Amperage7.9 amperage
    • ColorItemColor_Black
    • FinishItemFinish_Matte
    • Frequency Rating (Hz)50
    • Horsepower2 horse power
    • Voltage230V
    • Wattage1500 watt
    • Cord Length2 meter
    • Max Working Pressure360 pascal
    • Minimum Sell Quantity1
    • Motor Enclosure TypeTotally Enclosed Fan Cooled
    • Motor Thermal ProtectionSubItemPumpMotorThermalProtection_Automatic Reset
    • PhaseSubItemPumpPhase_Single
    • Product Depth286 millimeter
    • Product Height375 millimeter
    • Product Weight20.5 kilogram
    • Product Width690 millimeter
    • RPMs Max2900
    • Temperature Rating Max40 degrees Celsius
    • Temperature Rating Min5 degrees Celsius
    • Warranty - General3 years
    • UPC Code9318910003563

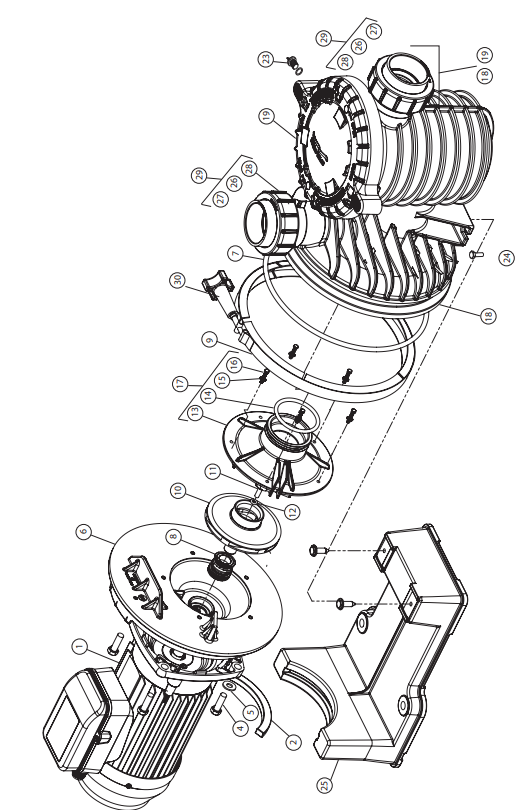

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    801420
    PAC-111-91011
    Product #: PAC-111-91011
    Mfg #: 801420
    2
    2
    C35-44
    MOTOR PAD
    Product #:
    Mfg #: C35-44
    Notes:
    Contact Customer Service
    3
    3
    801429
    PAC-101-91145
    Product #: PAC-101-91145
    Mfg #: 801429
    4
    4
    801431
    Screw 3/8inUNC x 1in Hex Hd S/S
    Product #:
    Mfg #: 801431
    Notes:
    SEE FASTENERS KIT
    5
    5
    801431
    Washer 3/8in x 3/4in x 18g St/St
    Product #:
    Mfg #: 801431
    Notes:
    SEE FASTENERS KIT
    6
    6
    C103-194PSSG
    STA-101-1362
    Product #: STA-101-1362
    Mfg #: C103-194PSSG
    7
    7
    U9-228A
    STA-101-3745
    Product #: STA-101-3745
    Mfg #: U9-228A
    8
    8
    801428
    PAC-601-91004
    Product #: PAC-601-91004
    Mfg #: 801428
    9
    9
    C19-37A
    STA-101-5155
    Product #: STA-101-5155
    Mfg #: C19-37A
    10
    10
    800766
    PAC-101-91045
    Product #: PAC-101-91045
    Mfg #: 800766
    11
    11
    37337-6080
    STA-101-3147
    Product #: STA-101-3147
    Mfg #: 37337-6080
    12
    12
    SR35505-1426
    STA-101-3148
    Product #: STA-101-3148
    Mfg #: SR35505-1426
    13
    13
    C1-271P
    DIFFUSER
    Product #:
    Mfg #: C1-271P
    Notes:
    Contact Customer Service
    14
    14
    U9-374
    STA-101-8557
    Product #: STA-101-8557
    Mfg #: U9-374
    15
    15
    -
    LOCKWASHER
    Product #:
    Mfg #: -
    Notes:
    NO LONGER REQUIRED
