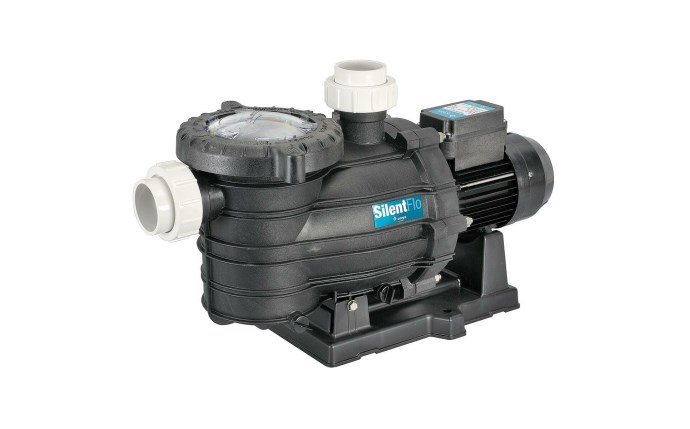

PENTAIR SILENTFLO 1.5HP 1100W POOL PUMP

Product #:PAC-10-91259

Mfg. Part #:SF1100100


The Onga SilentFlo is an ultra-quiet, high-efficiency, self-priming, medium head pump in 3/4 through 2hp with an extra large, integral hair and lint strainer.

Pentair

PENTAIR SILENTFLO 1.5HP 1100W POOL PUMP

Product #:PAC-10-91259

Mfg. Part #:SF1100100

Description

The Onga SilentFlo is an ultra-quiet, high-efficiency, self-priming, medium head pump in 3/4 through 2hp with an extra large, integral hair and lint strainer. SilentFlo is precision moulded with Pentair's innovative thermopastic composite resin that is not only tough and highly corrosion resistant but is design to dampen the noise created by the pump giving ultra-quiet operation. Silentflo features a high quality mechanical seal,stainless steel shaft and fasteners which will ensure that this pump will give top performance and reliability for years to come.

Documents

Feature Bullets

  • Quiet operation - A specially designed sound dampening pump casing and base make pump operation incredibly quiet, enabling you to run the pump at night without disturbing the neighbours and take advantage of the off-peak tariffs.
  • High efficiency - Precision-fit internal components and superior hydraulic design deliver effortless performance, energy savings and extended pump life.
  • Elevated base - Further dampens sound and vibration for even quieter operation and keeps the pump above sitting water which minimises corrosion.
  • Large volume Strainer basket Minimises the maintenance requirement by extending the time between strainer basket clean outs.
  • Dual connections - 50mm thread or 50mm quickdisconnect barrel unions (included). Cam & RampTM lid - Easy to remove, locks in place with a quarter turn, making inspection and cleaning a breeze.
  • 3 years limited warranty. Terms and conditions apply.

    • Branch Availability

    content loaded

    Specifications

    • BrandPentair
    • Amperage5 amperage
    • ColorItemColor_Black
    • FinishItemFinish_Matte
    • Frequency Rating (Hz)50
    • Horsepower1.5 horse power
    • Voltage230V, 240V
    • Wattage1100 watt
    • Minimum Sell Quantity1
    • Motor Enclosure TypeTotally Enclosed Fan Cooled
    • Motor Thermal ProtectionSubItemPumpMotorThermalProtection_Automatic Reset
    • Noise Rating (dB)59
    • Port Size 150 millimeter
    • Product Depth279 millimeter
    • Product Height385 millimeter
    • Product Width637 millimeter
    • Temperature Rating Max40 degrees Celsius
    • Temperature Rating Min5 degrees Celsius
    • Warranty - General3 years
    • UPC Code9318910003242

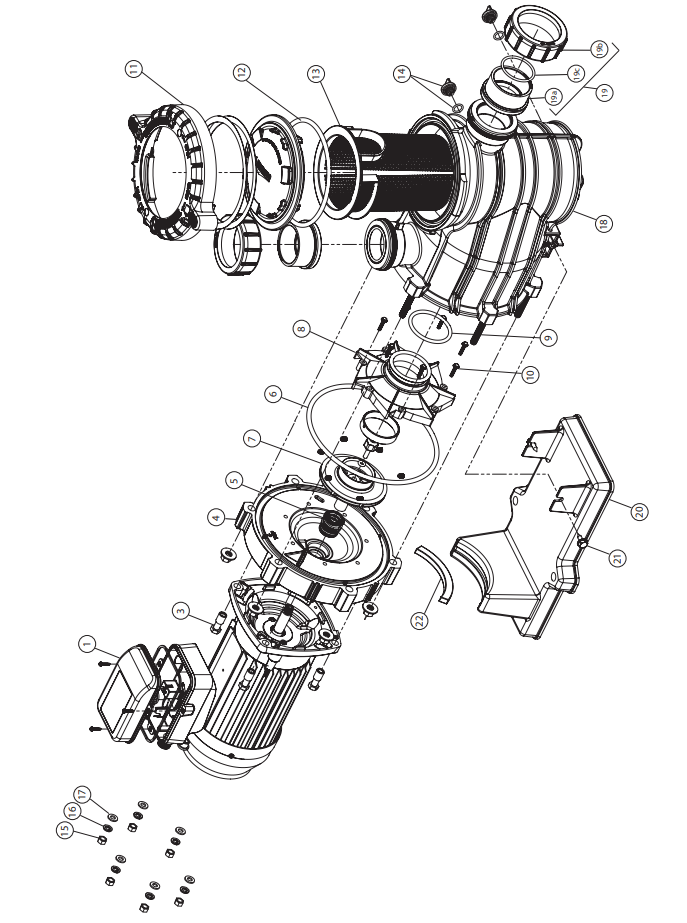

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    801419
    PAC-111-91010
    Product #: PAC-111-91010
    Mfg #: 801419
    2
    2
    801429
    PAC-101-91145
    Product #: PAC-101-91145
    Mfg #: 801429
    3
    3
    -
    SCREW 3/8"UNC x 1" HEX SS
    Product #:
    Mfg #: -
    Notes:
    SEE FASTENERS KIT
    -
    -
    801431
    FASTENERS KIT (INCLUDES ITEM 3 x4, 17x4)
    Product #:
    Mfg #: 801431
    4
    4
    C3-184P
    STA-101-2761
    Product #: STA-101-2761
    Mfg #: C3-184P
    5
    5
    801428
    PAC-601-91004
    Product #: PAC-601-91004
    Mfg #: 801428
    -
    -
    800900
    PAC-601-91001
    Product #: PAC-601-91001
    Mfg #: 800900
    6
    6
    U9-373
    STA-101-2768
    PENTAIR SILENTFLO SEAL PLATE CORD ORING
    Product #: STA-101-2768
    Mfg #: U9-373
    7
    7
    801426
    PAC-101-91072
    PENTAIR SILENTFLO 1100W PUMP IMPELLER
    Product #: PAC-101-91072
    Mfg #: 801426
    8
    8
    -
    DIFFUSER
    Product #:
    Mfg #: -
    Notes:
    SEE DIFFUSER AND ORING KIT
    9
    9
    -
    O-RING DIFFUSER
    Product #:
    Mfg #: -
    Notes:
    SEE DIFFUSER AND ORING KIT
    10
    10
    -
    SCREW 8/32" x 22mm SS PHILLIPS HEAD
    Product #:
    Mfg #: -
    Notes:
    SEE DIFFUSER AND ORING KIT
    801423
    PAC-101-91069
    Product #: PAC-101-91069
    Mfg #: 801423
    11
    11
    C3-185P
    LID (Before July 2010)
    Product #:
    Mfg #: C3-185P
    Notes:
    Contact Customer Service
    11
    11
    17307-0111S
    STA-101-1004
    PENTAIR MAX-E-PRO PUMP LID
    Product #: STA-101-1004
    Mfg #: 17307-0111S
